Description
Features:
1. Wide-Band Antenna (For ANT1 Socket) Wider Coverage, Particularly At Lower Frequencies, Has Made It Possible To Increase The Detection Distance Of A Conventional VHF/UHF Bug , While Saving Perfect Sensitivity At The Higher Bands (GSM, Wi-Fi, Bluetooth, Etc.)
2. Antenna (For ANT2 Socket) When An Affordable RF Detector Gets The Microwave Logperiodic Directed Antenna Supplied In The Standard Set. 2-4 Times Longer Distance To All Sources Above 2GHz (Wi-Fi 2.4GHz, Wi-Fi 5GHz, Bluetooth, Wi-Max, LTE High, Etc.). The Directionality Provides Easy Pinpointing Of A Wireless Source. You Not Only Know That There Is A Wi-Fi Source, But Can Quickly Pinpoint It.
3. Magnetic Field Signal Detection,Install The Magnetic Probe,Turn On The Power, Press The Strong Magnetic Detection Switch, The Purple Indicator On The Top Of The Magnetic Prob After The Light Is On,Enter The Magnetic Field Signal Detection Standby,And The Magnetic Field Induction Probe Is Close To The Magnetic Field Source, Before The White LED Of The The Terminal LED Light Up And The Buzzer Alarm.

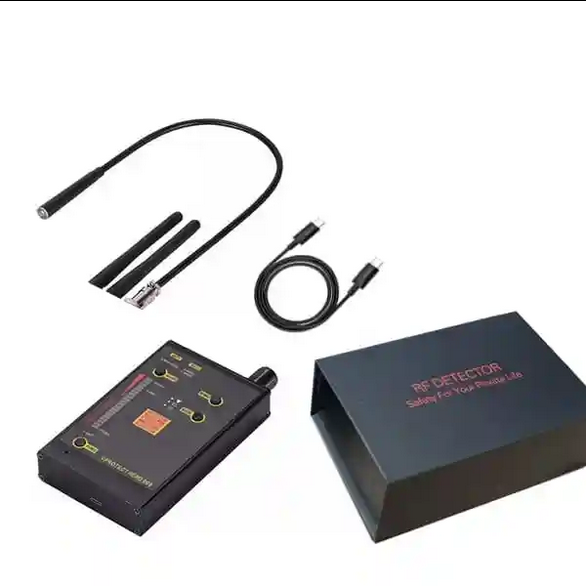

Package list:
1 * RF Detector
2 * Antennas
1 * USB Cables
1 * Adaptor
1 * Manual
1. Wide-Band Antenna (For ANT1 Socket) Wider Coverage, Particularly At Lower Frequencies, Has Made It Possible To Increase The Detection Distance Of A Conventional VHF/UHF Bug , While Saving Perfect Sensitivity At The Higher Bands (GSM, Wi-Fi, Bluetooth, Etc.)
2. Antenna (For ANT2 Socket) When An Affordable RF Detector Gets The Microwave Logperiodic Directed Antenna Supplied In The Standard Set. 2-4 Times Longer Distance To All Sources Above 2GHz (Wi-Fi 2.4GHz, Wi-Fi 5GHz, Bluetooth, Wi-Max, LTE High, Etc.). The Directionality Provides Easy Pinpointing Of A Wireless Source. You Not Only Know That There Is A Wi-Fi Source, But Can Quickly Pinpoint It.
3. Magnetic Field Signal Detection,Install The Magnetic Probe,Turn On The Power, Press The Strong Magnetic Detection Switch, The Purple Indicator On The Top Of The Magnetic Prob After The Light Is On,Enter The Magnetic Field Signal Detection Standby,And The Magnetic Field Induction Probe Is Close To The Magnetic Field Source, Before The White LED Of The The Terminal LED Light Up And The Buzzer Alarm.
Package list:
1 * RF Detector
2 * Antennas
1 * USB Cables
1 * Adaptor
1 * Manual
Technical Data
Frequency Range | 50MHz-5.4GHz |
Detect dynamic range | -50dBm-10dBm |
Detection Sensivity | <0.03mw |
Detect Rage | |
---|---|
1.2G Hz wireless camera | 36m² |
1.2GHz Wireless Camera Range | 25m² |
Cellphone Signal 2G,3G,4G | 5--25m² |
Magnetic Detection Sensitivity | 50mm--150mm: |
Indicating Method | 20 Level LED Luminous Indicator /Variation Sound Indication |
Power | Bulit-In 3.7V 1500mAh li-po Battery |
Working Current | 25-35mA |
Last Time | 20-45H |
Package Weight | about 900g |
Detector Size | 125x52.5x21.5mm |
